Smart Monitoring System
The Smart Monitoring System offers comprehensive water quality diagnostics, measuring and displaying key parameters such as chlorine, salt, and pH levels. Additionally, it keeps track of the Monitoring System Sensor and Salt cartridge life, ensuring efficient maintenance. Users can conveniently access water care readings through the topside control, with updates provided hourly. Furthermore, the system offers valuable feedback and recommendations to effectively manage water chemistry, including chlorine, pH, and salt levels, optimizing the water quality for various applications.
If you want to use the Smart Monitoring System, you must adhere to the following:
- Do not use FreshWater Mineral Spa Sanitizer or other silver nitrate products.
- Do not install Ozone.
- Never use Bromine or MPS products.
Smart Monitoring System - FAQs
Will this work with my hot tub?
The FreshWater IQ Smart Monitoring System is exclusively available for specific series within the Watkins Wellness line of hot tubs. In the Hot Springs line, both the 2024 Highlife and Limelight series are equipped to accommodate the Start-Up Kit installation. Meanwhile, in the Caldera line, the 2024 Utopia and Paradise hot tubs are also prepared to accept the Start-Up Kit, with the exception that the Utopia Series will come standard with the Start-Up Kit included. If you have more questions, you can contact our customer service department and we can help you determine compatibility.
Is Smart Monitoring System compatible with the Hot Spring Spas App / Connected Spa Kit?
No, they are working on next generation IoT solution.
Will logo badge illuminate for smart monitoring system notification?
Yes, Hot Spring logo will illuminate or flash.
Why can we not use FreshWater Mineral Spa Sanitizer (silver)?
The electro-chemical properties of silver can deposit on sensor and cause readings to drift.
Why no Ozone or MPS?
These are oxidizers and will affect true chlorine readings. MPS will self-correct over time once it dissipates in spa water. Ozone must be removed, as it will always impact readings.
Is the salt indicator salt or TDS?
Measuring TDS, that has been baselined to represent the correct salt ranges for FreshWater Salt. Therefore, no numbers are displayed for this indicator.
Will we need a Comm Port Extender (PN 74150)?
Depending on other accessories installed, yes.
Why are other chemicals measurements not displayed (e.g. Alkalinity or Hardness)?
We focused on chlorine and pH. Looking into additional items in the future.
Does smart monitoring system save history of readings?
No, not at this time.
Does the dealer need to install the Smart Monitoring System?
No, simple instructions and graphics are provided for spa owner in the Quick Start Guide.
What do I need to do for spas to support Smart Monitoring System?
Be sure to update spa software using thumb drive. Software update available through our customer service team.
What models work with the FreshWater IQ system?
Hot Spring Highlife & Limelight models are all Smart Monitor System Ready.
Caldera Utopia & Paradise models are all Smart Monitor System Ready.
What if the sensor is dropped in water or gets wet?
Quickly remove the sensor and rise with water, distilled water is preferable. Shake all excess water from the part and place in a bag of rice for 48 hours.
Does shutting down spa (e.g. winterizing) impact sensor life?
No, only active operation affects sensor life. Sensor to be stored in clean and dry state.
Is the FreshWater Salt 10-Day Timer still required?
Yes, the 10-Day Timer is an important function for FreshWater Salt system. Smart monitoring system will indicate high level of chlorine if not addressed, however the FreshWater Salt system will lower output level automatically.
Is FreshWater Start-up Kit required?
Yes, for Hot Spring Limelight and Caldera Paradise series hot tubs.

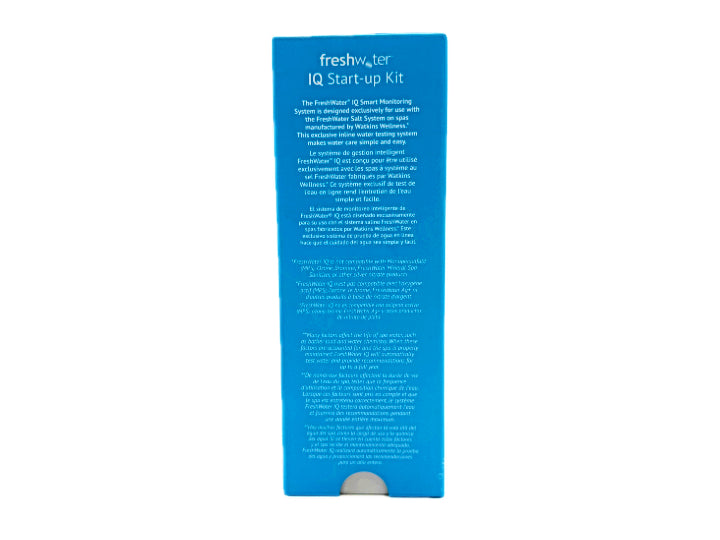

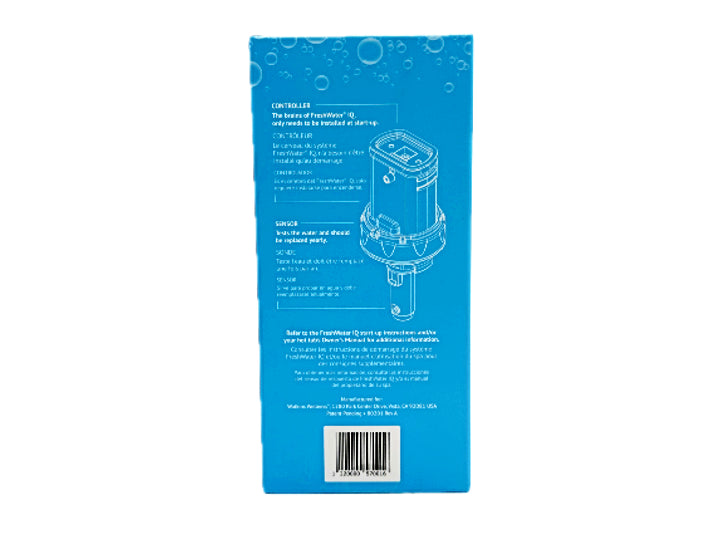

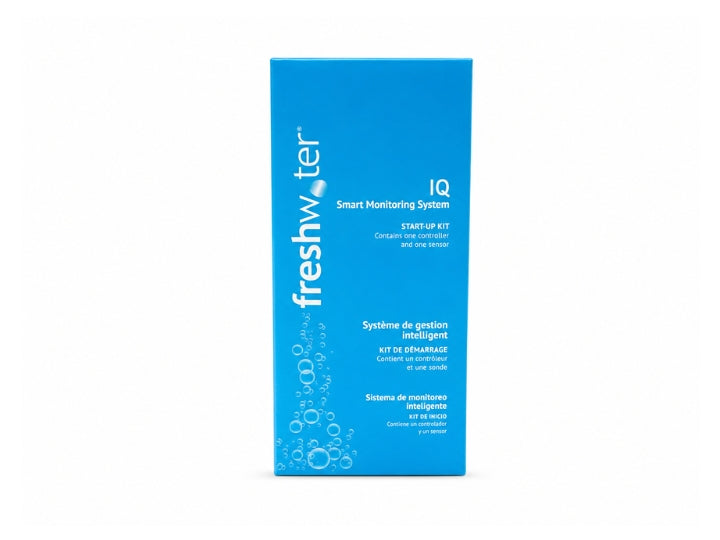

FreshWater IQ Start-Up Kit
Overview
100% AUTHENTIC OEM The FreshWater IQ Start-Up Kit is the smart-monitoring upgrade for your FreshWater Salt System — the kit that turns automatic chlorine generation into an intelligent water care platform with real-time chemistry monitoring, smart alerts, and precision dosing. The kit installs the IQ controller and sensor, then connects to your existing FreshWater Salt System to deliver hourly chlorine, pH, and salt readings directly on your topside control panel — plus actionable recommendations for any chemistry adjustments needed. Available for 2024 and newer Hot Spring Highlife, Hot Spring Limelight, Caldera Utopia, and Caldera Paradise spas.
⚠️ Caldera Utopia owners — you probably already have this kit. The IQ Start-Up Kit ships pre-installed in 2024+ Caldera Utopia spas at the factory. If you own a Utopia, check your spa's control panel for IQ readings (chlorine, pH, salt) before ordering this kit. If you're already seeing those readings, you only need the 12-month replacement sensor, not the full kit. Buying this kit when you already have one factory-installed is a $429.99 mistake — and we cannot accept returns on electronic items.
What's Included in the IQ Start-Up Kit
| Item | What It Does | Service Life |
|---|---|---|
| IQ Controller | Electronic brain of the system — connects to spa hardware and processes sensor readings | Permanent (no replacement unless damaged) |
| IQ Sensor | Measures chlorine, pH, and salt level hourly; feeds data to the controller | 12 months — annual replacement |
| Smart Monitoring System Start Guide | Complete setup and operating reference | Permanent reference |
The controller is a one-time purchase — you'll never need to replace it unless it's physically damaged.
Key Features
- FreshWater Spa Salt — for maintaining salt level around 1,750 ppm
- FreshWater Salt System Replacement Cartridges — every 4 months
- Vanishing Act Calcium Remover (standard or XL) — fresh fill calcium reduction
- FreshWater Stain & Scale Defense — weekly maintenance to protect the salt cell
- FreshWater pH Up / pH Down — for chemistry adjustments the IQ system recommends
- FreshWater Phosphate Remover — phosphate control without sensor interference
- FreshWater Filter Cleaners — instant or deep-soak filter maintenance
- FreshWater Cover Shield — cover protection
- FreshWater Concentrated Chlorinating Granules (dichlor) — for occasional shock during heavy bather load
Directions
- Confirm the FreshWater Salt System is running with a stable daily chlorine residual of 3 ppm. Use 5-Way Test Strips to verify.
- Power off the spa at the breakers (refer to your spa owner's manual for the specific procedure).
- Locate the IQ system installation point on your spa (refer to the included Start Guide for your specific model).
- Install the IQ Controller per the manufacturer's instructions in the Start Guide.
- Remove the protective film from the sensor. Do not touch the sensor electrode with bare hands — handle by the housing only.
- Insert the sensor into the controller and lock per the Start Guide instructions.
- Restore power to the spa at the breakers.
- Allow 15–30 minutes for the sensor to calibrate with your current water chemistry.
- Verify IQ readings appear on your topside control panel. If readings don't appear within 24 hours, refer to the Start Guide troubleshooting section or call our service team.
Compatible Spa Models
| Brand | Compatible Series (2024 and newer) | Notes |
|---|---|---|
| Hot Spring Spas | Highlife Series | IQ may be factory-installed; check control panel |
| Hot Spring Spas | Limelight Series | IQ may be factory-installed; check control panel |
| Caldera Spas | Utopia Series | IQ Start-Up Kit comes pre-installed at factory — most Utopia owners do NOT need this kit |
| Caldera Spas | Paradise Series | IQ may be factory-installed; check control panel |
The IQ system is not compatible with:
- Hot Spring or Caldera spas built before model year 2024
- Hot Spring ACE Salt System (different system entirely, used in 2004–2021 spas)
- Hot Spot, Freeflow, or other non-Highlife/Limelight/Utopia/Paradise spas
- Spas without an active FreshWater Salt System
- Spas using bromine, biguanide, ozone, or silver ion sanitizer methods
