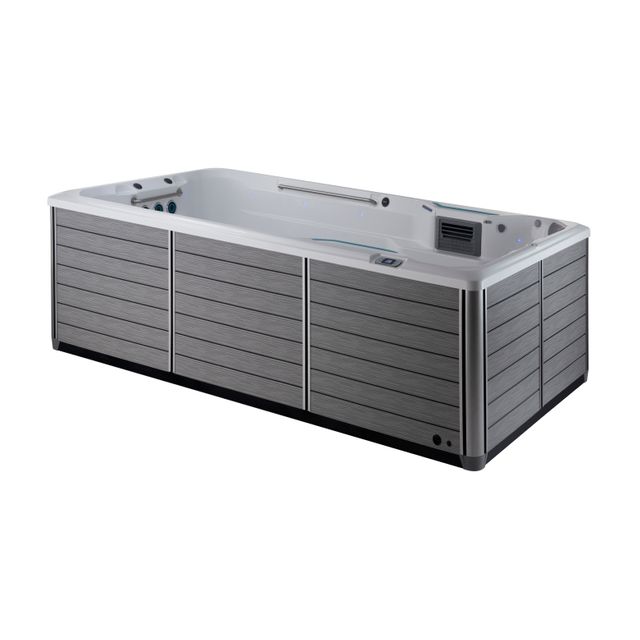

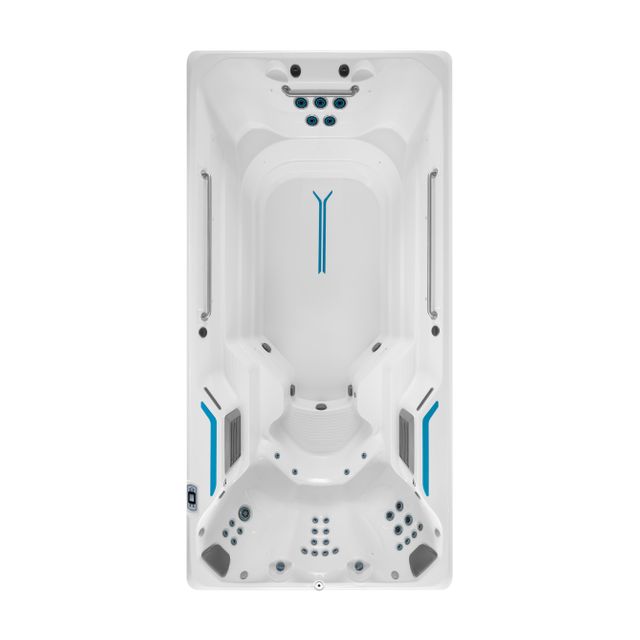

Endless Pools X500 15 Foot Swim Spa
Endless Pools X500 15 Foot Swim Spa
Overview
Our compact swim spa with our unique, SwimCross® jetted current! Designed for fitness, the X500 is just as suitable for family fun, relaxation, and recreational swimming.
Quick Specs
- Depth: 40"
- Dimensions: 15’ L x 89" W x 50" H | 457 cm L x 226 cm W x 127 cm H
- Water Care System: UVC + CD Ozone
- Voltage: 230 V
- Water Capacity: 1,650 gal.
- Dry Weight: 2,705 lbs.
- Filled Weight: 18,200 lbs.
Hydrotherapy
- Hydromassage Seats: 3
- Hydromassage Jet Count: 27
-
Hydromassage Jet Types
- 1 - Large Jet
- 2 - Rotary Jets
- 2 - Directional Jets
- 22 - Mini Jets
- Hydromassage Jet Pump: 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump
Construction
- Swim Technology: SwimCross® current featuring 3 round Swim Jets, 1 River Jet
-
Swim Power Unit: 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque –
(1) Single Speed & (1) Dual Speed - Control System: Touchscreen Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel
- Substructure: 14-Gauge Galvanized Steel Frame with Thermoformed ABS Base Pan
Energy Efficiency
Certified to the APSP 14 National Standard and the California Energy
Commission (CEC) in accordance with California Law
Water Care
- Water Care System: UVC + CD Ozone
- Effective Filtration Area: 200 sq. ft.
Design
- Cabinet Colors: Gray | Mocha
- Shell Colors: Alpine White | Ice Gray
- Water Feature: 2 Illuminated Waterfalls
- Lighting System: 16 Multi-Color LED Lights, Exterior LED Lighting (optional)
Accessories
- Music Option: 8 Speakers + Subwoofer, Bluetooth® Enabled
Brand
Endless Pools®
Important
Actual shell and cabinet colors may differ from on-screen representation. Please see your local dealer to verify.
Distinctive Features
SwimCross Resistance Current
It's an exclusive airless 4-jet system. The variable current is ideal for recreational swimming and exercise.
Exercise Functionality
You'll love the ample space for our Aquabike, or use the built-in anchors for a vigorous resistance-band workout.
Spa Seating with Hydromassage Jets
Four distinct hydromassage jets are uniquely positioned across three seats to target all areas of the back.
Endless Pools X-Series FAQs
What is the Endless Pools X-Series?
The Endless Pools X-Series is a line of SwimCross® Exercise Systems designed for swimming, low-impact exercise, family fun, and relaxation. These swim spas use a smooth, adjustable SwimCross® current that lets users swim in place without needing a full-size backyard pool.
What makes the X-Series different from other swim spas?
The X-Series is designed to offer more than a traditional jetted swim spa. Its SwimCross® current provides variable resistance for swimming, fitness, and recreation, while built-in hydrotherapy seating allows users to relax after a workout.
Can you swim in an Endless Pools X-Series swim spa?
Yes. The X-Series is built for swimming in place using an adjustable resistance current. You can set the current to match your pace, making it useful for casual swimming, fitness training, and low-impact aquatic exercise.
Is the X-Series good for exercise?
Yes. The Endless Pools X-Series is designed for total-body fitness, aquatic exercise, and recreational swimming. The adjustable current allows users to swim, move, stretch, and exercise in water with less impact on joints compared to many land-based workouts.
What X-Series models are available?
The Endless Pools X-Series includes models such as the X500 and X2000. The X500 is a compact 15-foot swim spa, while the X2000 is a larger 20-foot dual-temperature model with separate swim and spa areas.
What is the difference between the X500 and X2000?
The X500 is a compact swim spa designed for swimming, exercise, family fun, and relaxation in one body of water. The X2000 is larger and includes dual-temperature zones, allowing users to keep the swim area at a comfortable exercise temperature while enjoying a separate hot tub section for warm-water hydrotherapy.
Does the X-Series include hot tub seating?
Yes. X-Series models include ergonomic spa seating with hydrotherapy jets, giving users a place to relax after swimming or exercising. This makes the X-Series a strong option for households that want both fitness and spa-style comfort.
Can the Endless Pools X-Series be used year-round?
Yes. Endless Pools swim spas are designed as all-season fitness and recreation systems. With proper installation, water care, and maintenance, an X-Series swim spa can be used throughout the year for swimming, exercise, relaxation, and family enjoyment.
Is the X-Series a good option for families?
Yes. The X-Series is a versatile option for families because it supports swimming, play, exercise, and relaxation in one compact design. Endless Pools also emphasizes that children should never be left unattended or unsupervised when using their products.
How much maintenance does an Endless Pools X-Series swim spa require?
Endless Pools swim spas are designed to be lower maintenance than many traditional pools. They come standard with water care systems, and optional upgrades may be available for added purification and convenience. Regular water testing, cleaning, filter care, and chemical balancing are still important.
Swim Spa Safety Tips
Swim spas are a great way to enjoy swimming, exercise, hydrotherapy, and family fun at home, but they should always be used with care. Always supervise children and inexperienced swimmers, even in shallow or compact swim spas. Keep the cover secured when the swim spa is not in use, and make sure the area around the swim spa is clear, well-lit, and slip-resistant. Users should enter and exit slowly using steps or handrails, avoid running around the spa, and never dive into a swim spa. Before exercising, start slowly, stay hydrated, and avoid overexertion, especially when using swim currents, resistance equipment, or underwater treadmills.
